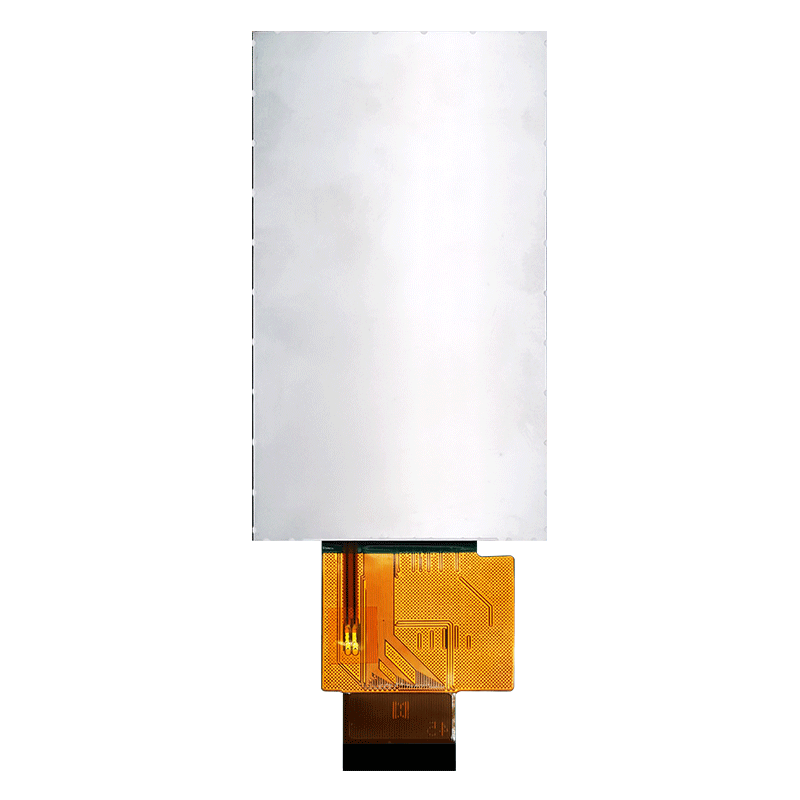

类型：TFT竖屏
显示像素：480x800
外形尺寸(mm) ：60.86x102.57x2.3
VA尺寸(mm)：4.3
AA尺寸(mm) ：4.3
应用：仪器仪表
视角：全视角

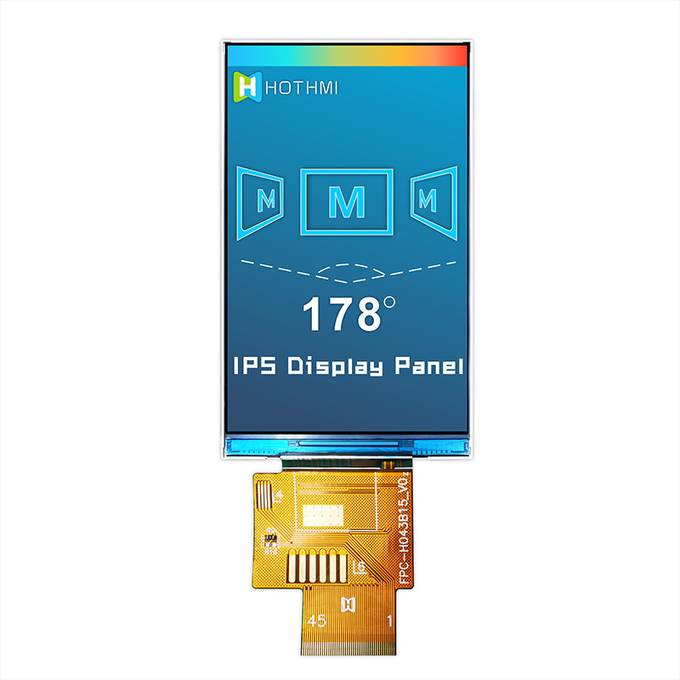

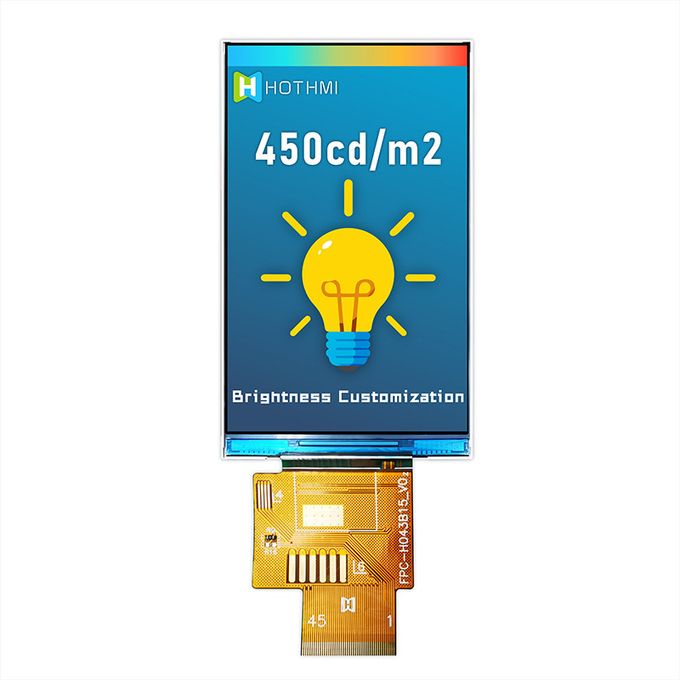

背光/亮度：450cd/m2
引脚：45pin

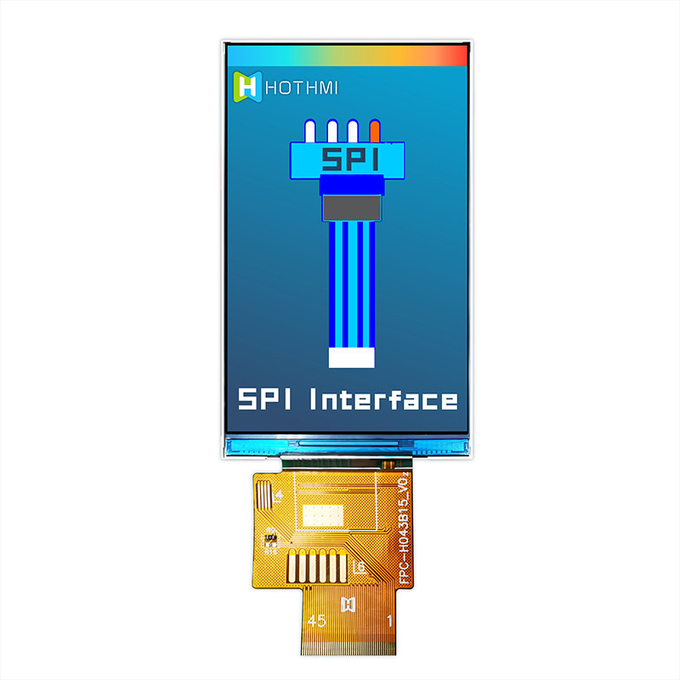

接口方式：SPI

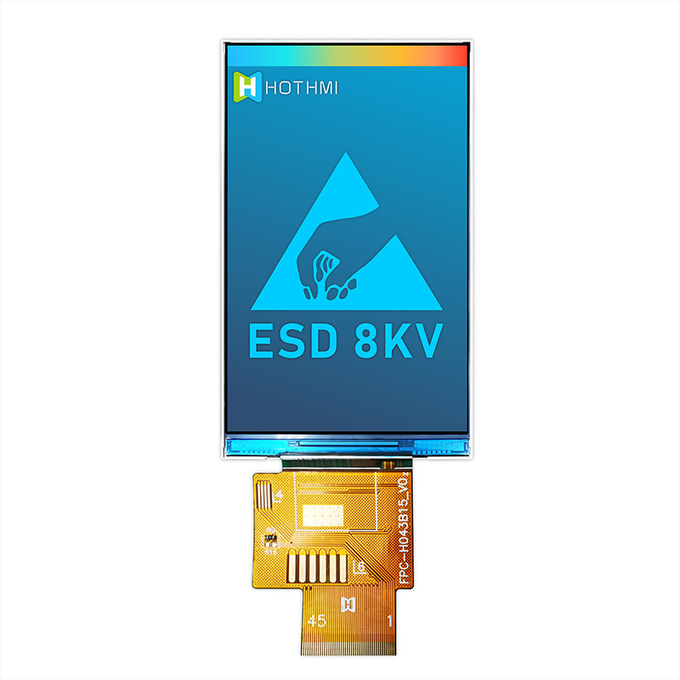

特殊说明：抗静电ESD 8KV

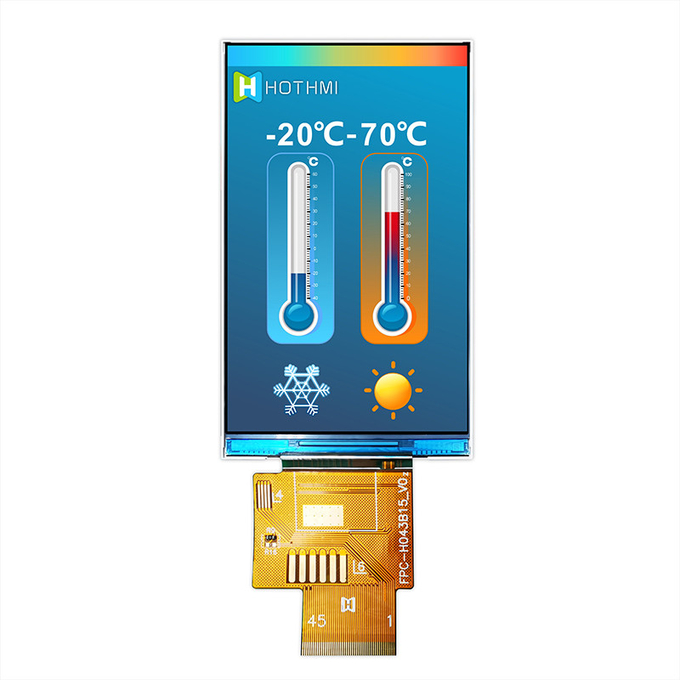

工作温度：-20~70℃
供电电压：2.8v
驱动芯片：ST7701S

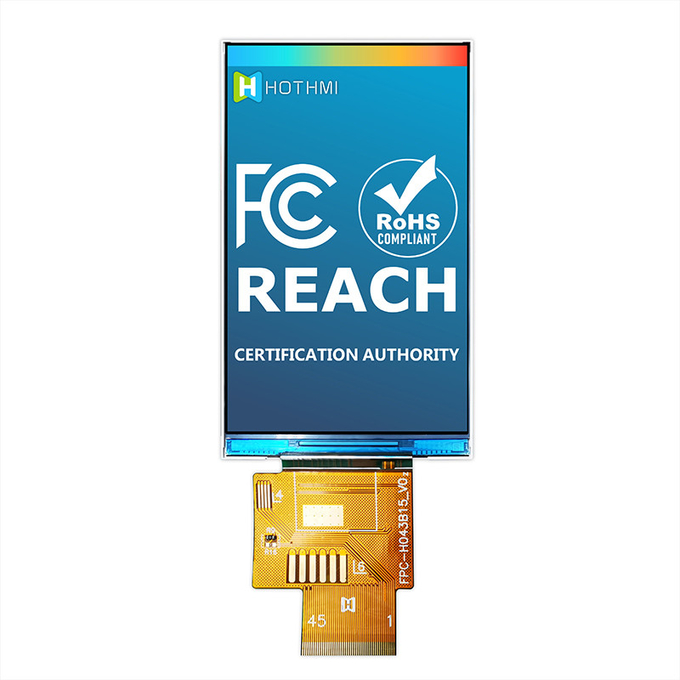

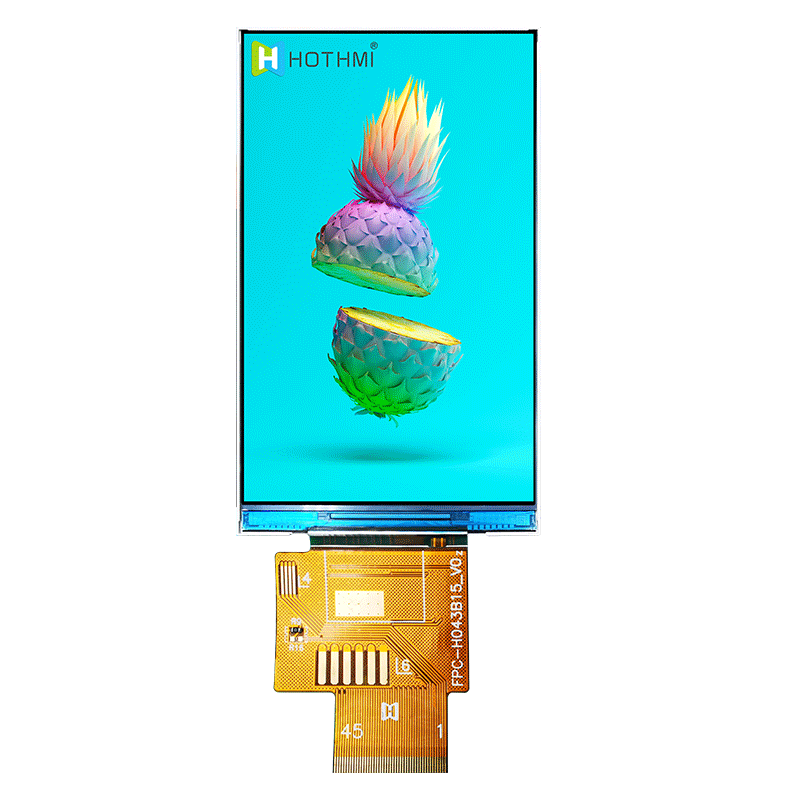

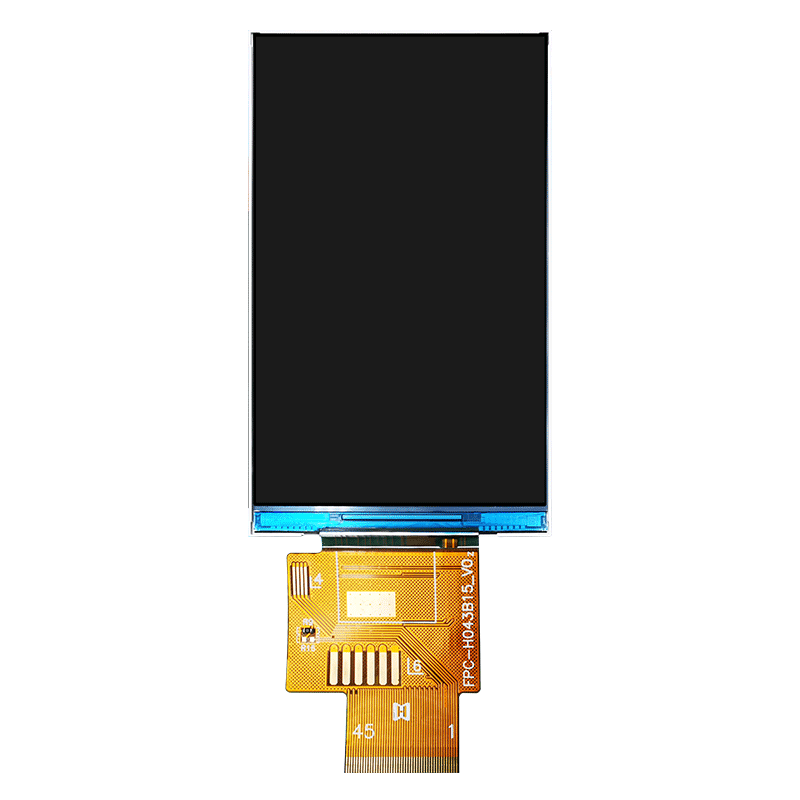

4.3寸 TFT LCD 显示模块 480X800分辨率 TFT LCD 显示器制造商用于仪器仪表 H043B15WVIST4N45
TFT-H043B15WVIST4N45 | 4.3英寸IPS LCD显示屏 | TFT LCD显示屏制造商 | 480x800分辨率 | -20℃~70℃ | 用于仪器仪表
隆重推出 TFT-H043B15WVIST4N45，这是一款专为仪表应用设计的高品质 4.3 英寸 TFT LCD 显示模块。 该模块具有 480x800 像素的分辨率和 IPS LCD 显示屏，可提供清晰的图像和鲜艳的色彩，非常适合显示关键数据和信息。
该模块由领先的 TFT LCD 显示器制造商设计和制造，具有 -20℃ 至 70℃ 的宽温度范围，适用于各种环境。 其紧凑的尺寸和易于使用的界面使其易于集成到您现有的仪器系统中。
无论您是设计新仪器还是升级现有仪器，TFT-H043B15WVIST4N45 都能提供完成工作所需的可靠性和性能。 凭借其高质量的显示屏和耐用的结构，该模块一定能满足您未来几年的需求。
那为什么还要等？ 立即订购您的 TFT-H043B15WVIST4N45 TFT LCD 显示模块，亲身体验不同之处！
General Feature
Item | Standard Value | Unit | ||

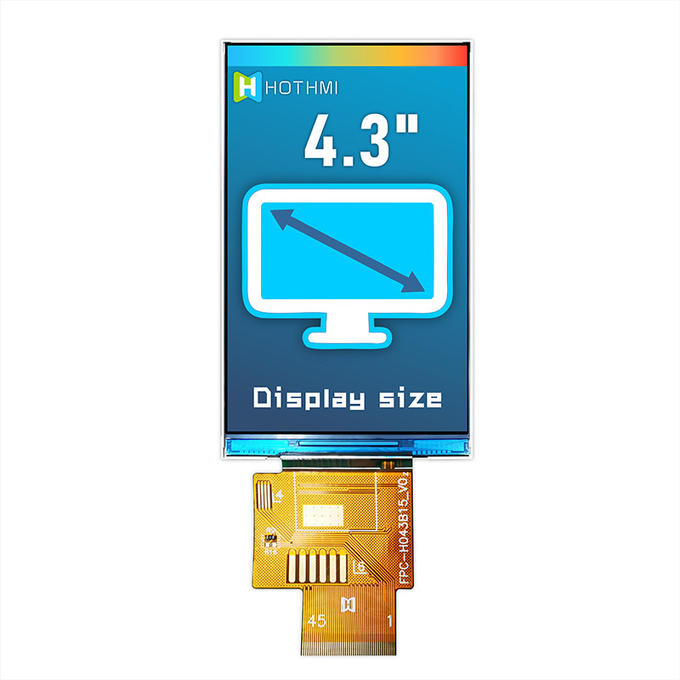

Display Size | 4.3 | Inch | ||
Number of Pixels | 480(H)*3(RGB)* 800(V) | dots | ||
Active Area | 56.16x93.6mm | mm | ||
Outline Dimension | 60.86x102.57x2.3 | mm | ||
Viewing Direction | FULL O'clock | - | ||
Interface | SPI+RGB | - | ||

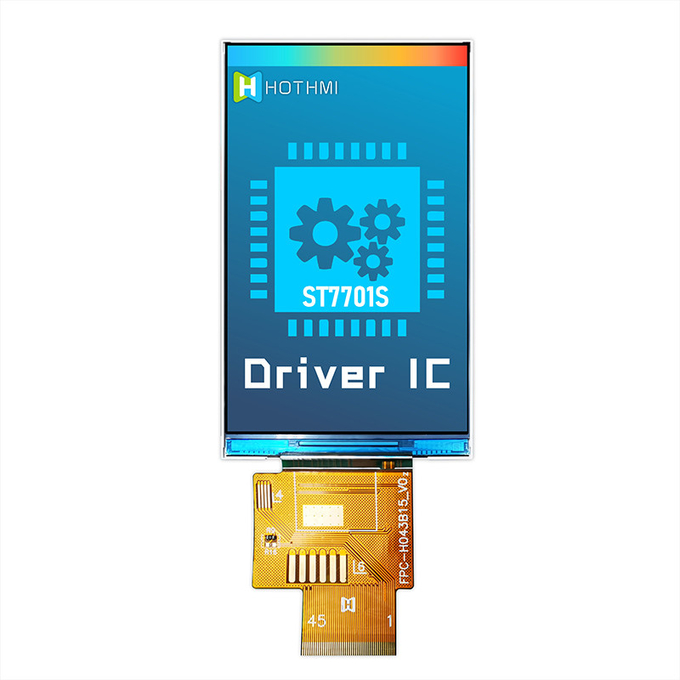

Driver IC | ST7701S | - | ||
Driver Condition | VCI=2.8V(Typ) | V | ||
Backlight | - | - | ||
Touch Panel | WHITOUT TOUCH | |||
CTP Driver IC | - | - | ||
Driver Condition | VDD=2.8 | V | ||
TFT Operation AT | -20 ～ +70 | ℃ | ||
TFT Storage AT | -30 ～ +80 | ℃ | ||
Pin Description
| Pin NO. | Symbol | Description |
| 1 | RTP-XR/CTP-SCL | Touch control pin |
| 2 | RTP-YD/CTP-SDA | Touch control pin |
| 3 | RTP-XL/CTP-INT | Touch control pin |
| 4 | RTP-YU/CTP-RES | Touch control pin |
| 5~6 | GND | Ground |
| 7 | VCI | Digital Power |
| 8 | IOVCC | Power Supply for I/O System |
| 9 | SDO | Serial data output pin used for the SPI Interface. |
| 10 | SDI | Serial data input/output bidirectional pin for SPI Interface. |
| 11 | SCL | Serial clock input for SPI interface. |
| 12 | CS | A chip select signal |
| 13 | RESX | TFT Reset Pin |
| 14~21 | DR[7~0] | Red data bus |
| 22~29 | DG[7~0] | Green data bus |
| 30~37 | DB[7~0] | Blue data bus |
38 |
DEN | Data input enable. Low: access enabled ; High: access inhibited |
| 39 | PCLK | Pixel clock input pin |
| 40 | HSD | Horizontal sync signal |
| 41 | VSD | Vertical sync signal |
| 42 | NC | No Connect |
| 43 | LEDK | LED Cathode |
| 44 | NC | No Connect |
| 45 | LEDA | LED Anode |
All Products
| Reliability Testing | Customers can expect all production parts to meet or exceed operational requirements over temperature, humidity, and vibration. |
| Glass Cleanliness | Customers can expect glass to be protected by liners and presented mindful of cleanliness standards. This means glass will be clean of contaminants, fingerprints, and other foreign material. |
| Bezel Appearance | Bezels will be uniformly painted free of foreign materials and distracting cosmetic blemishes. Our standards maintain a clean scratch-free surface. |
| PCB Appearance | PCB’s are delivered with long-term reliability in mind. Finishes are free of bubbles, foreign contaminants, and meet all UL fire requirements. PCB materials will always be delivered within industry norms. PCB edges will be cleanly cut and void of burrs. |
| Soldering | Soldering of all leaded and SMT components is consistent in providing the mechanical security and electrical connectivity. |
| Consistency | Our manufacturing and inspection processes ensure product consistency from lot to lot. This means orders processed over the years will continually meet your expectations. We do this by exacting manufacturing specifications, with attention to detail in our processes, and by comparing to the golden units. |
| Product Integrity | Quality in product manufacturing ensures integrity in construction. Customers can expect tight assembly without worry of loose parts or missing material. Our products will meet all environmental expectations including temp, humidity, & vibration conditions. |
| Glass Color | While normal variations of glass color may occur (due to manufacturing tolerances), Newhaven Display maintains color compliance per internal approved color charts. These charts are maintained to ensure any minor glass deviations are identified and corrected as needed. |
| ESD Protection & Safety | All devices are designed and handled in consideration of ESD protection. This includes ESD-SAFE packaging within anti-static bags, wraps, and trays. Customers are reminded to always follow ESD safety to best protect the devices. |

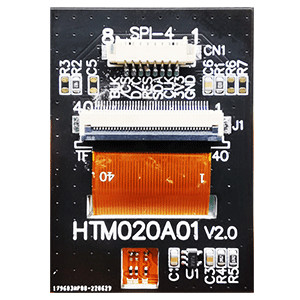

Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure.

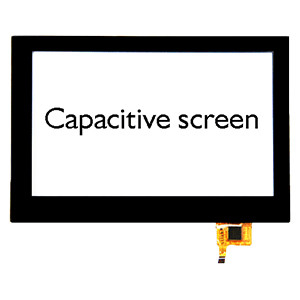

Enhance your user experience with capacitive or resistive touch screen technology. We’ll adjust the glass thickness or shape of the touch panel so it’s a perfect fit for your design.
