产品搜寻

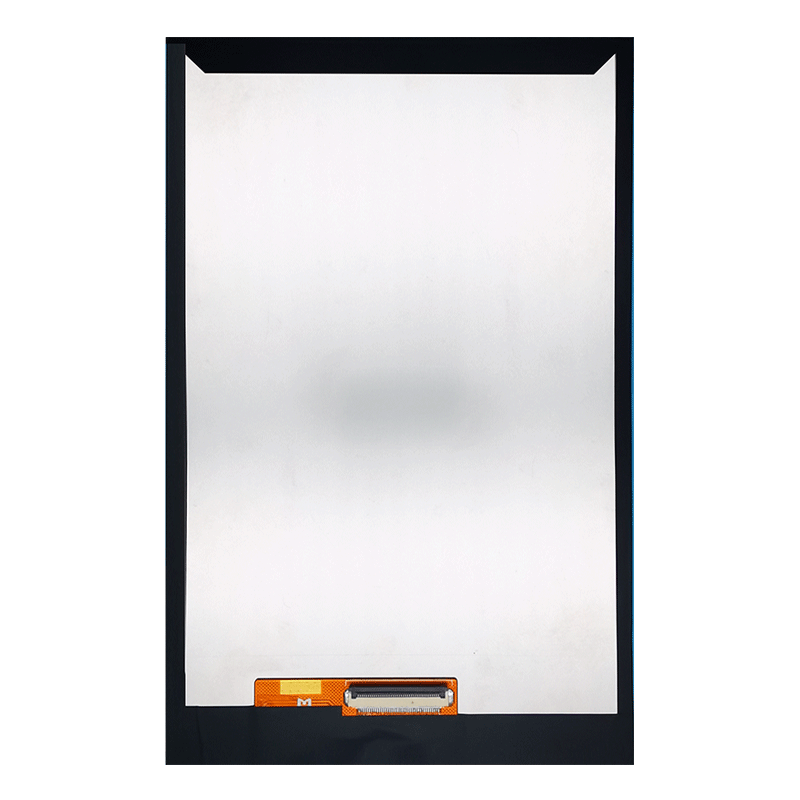

类型：TFT竖屏

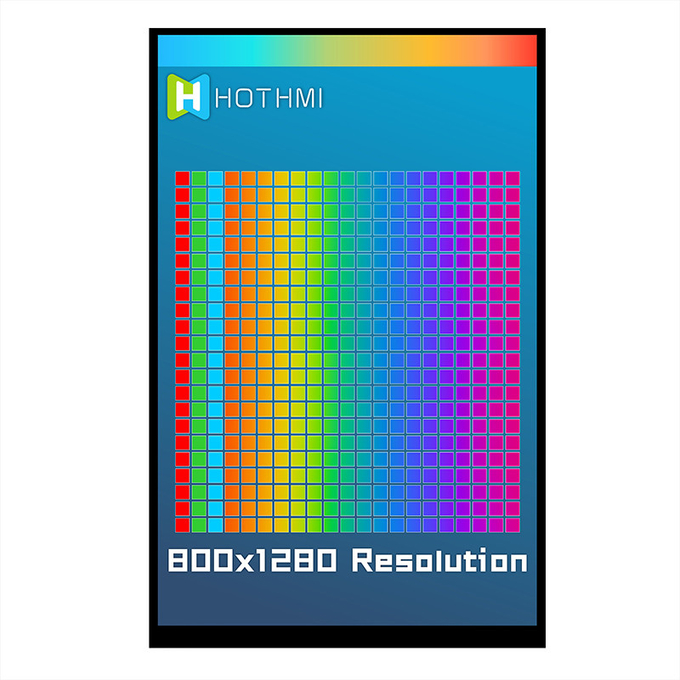

显示像素：800x1280
外形尺寸(mm) ：114.70x184.20x2.65

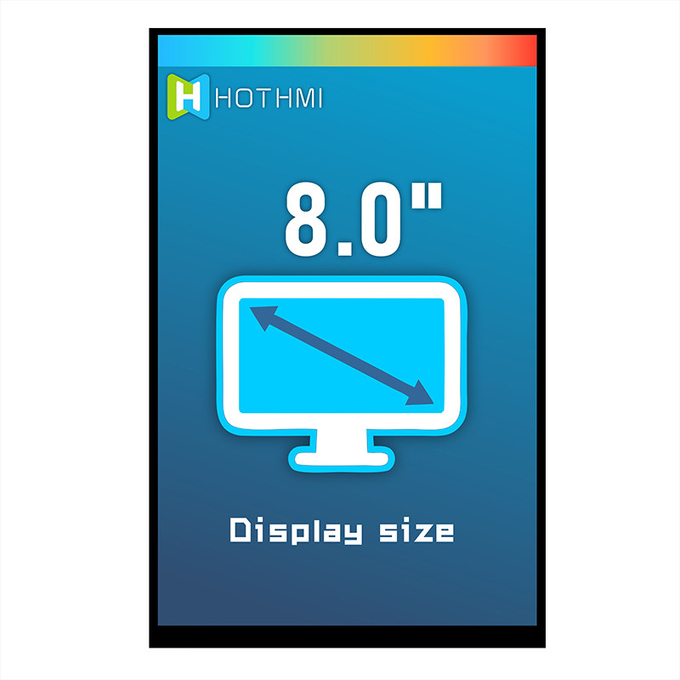

VA尺寸(mm)：8.0
AA尺寸(mm) ：8.0
有效尺寸mm：107.64x172.224
应用：车载，医疗，工控

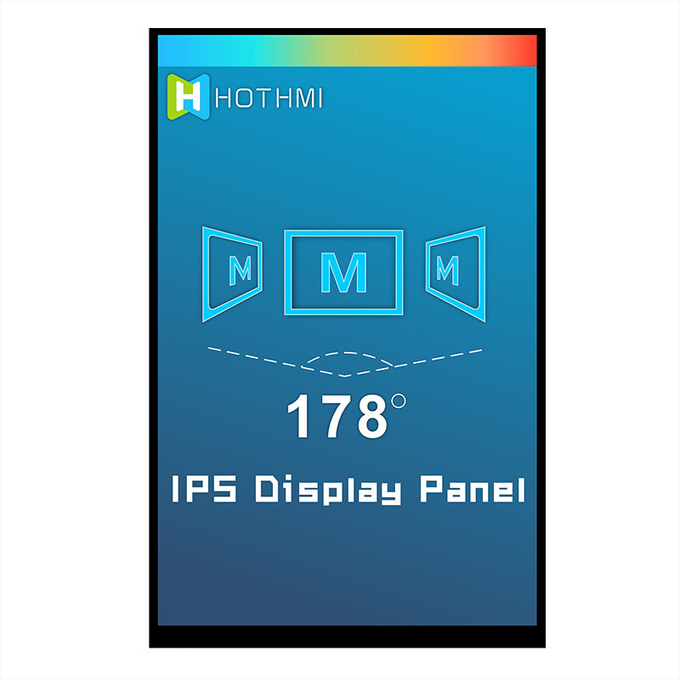

视角：全视角

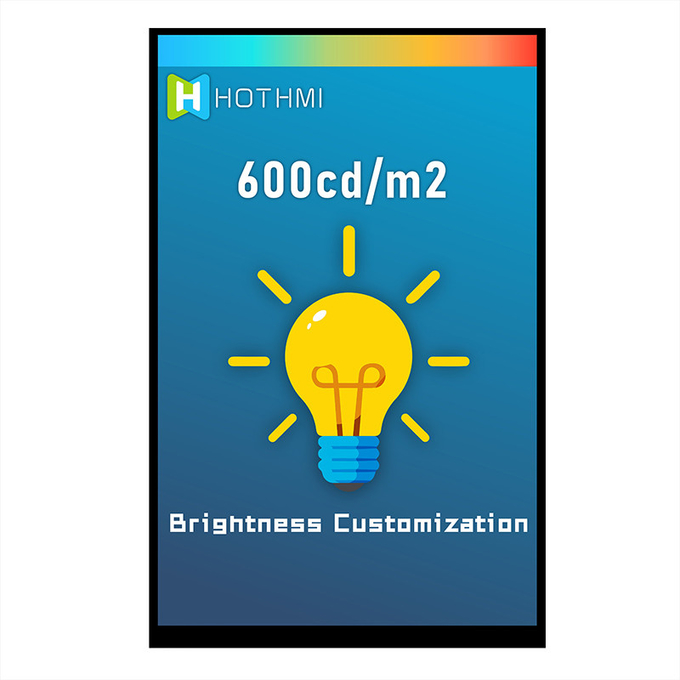

背光/亮度：600cd/m2
引脚：40pin
接口方式：MIPI

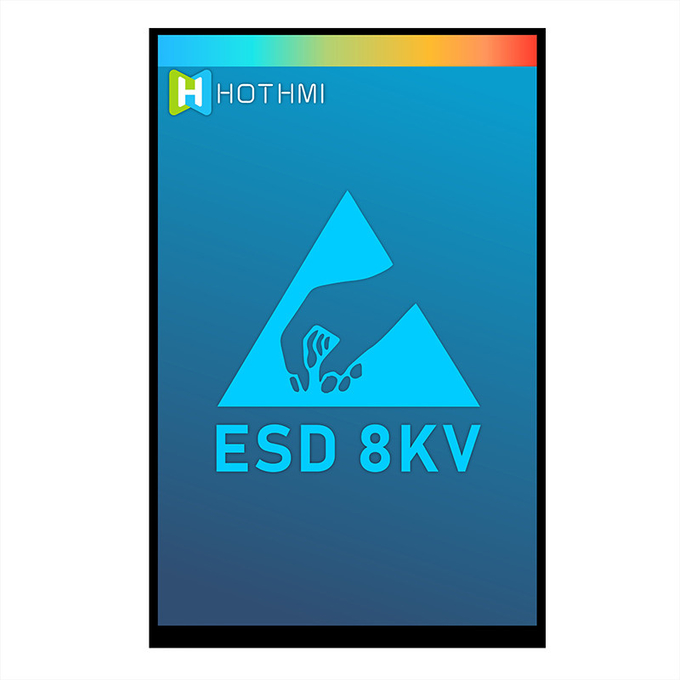

特殊说明：抗静电ESD 8KV

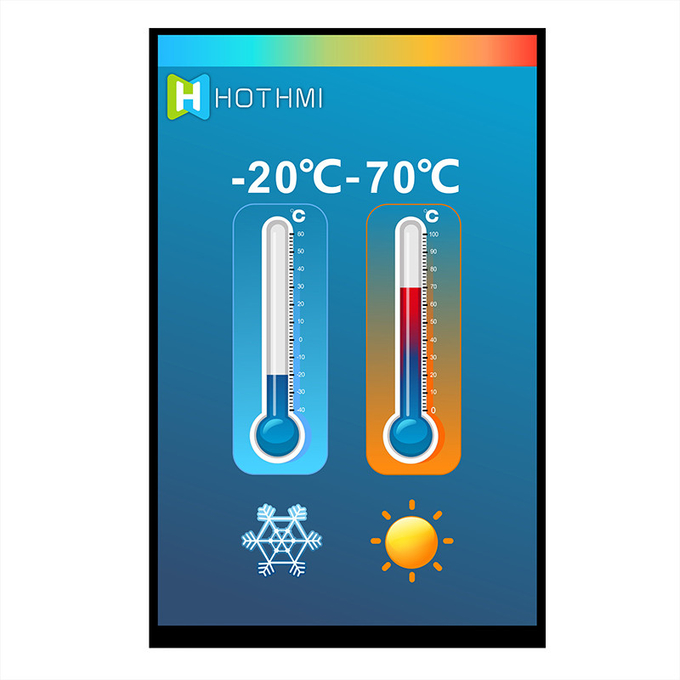

工作温度：-20~70℃
供电电压：2.8v
驱动芯片：JD9365
隆重推出 TFT-H080A5HDIFT6N40，这是一款 8.0 英寸 IPS LCD 显示屏，分辨率为 800x1280 像素，非常适合工业控制应用。 凭借其先进的技术，这款显示器即使在阳光直射下也能提供最佳可视性，是户外使用的绝佳选择。
TFT-H080A5HDIFT6N40 采用 IPS 技术，提供宽视角和出色的色彩再现，确保所有图像和文本都清晰且易于从任何角度阅读。 其 MIPI 接口提供快速可靠的数据传输，而其 JD9365 驱动器 IC 提供卓越的性能和可靠性。
除了其卓越的性能外，TFT-H080A5HDIFT6N40 还可以承受工业使用的严苛条件。 凭借其坚固的结构和耐用的材料，该显示器能够承受极端温度、冲击和振动，使其成为在恶劣环境中使用的理想选择。
无论您需要显示器用于工业控制还是其他要求苛刻的应用，TFT-H080A5HDIFT6N40 都是完美的解决方案。 凭借其先进的技术、卓越的性能和坚固的结构，它提供了质量和耐用性的理想组合，确保它将在未来几年提供可靠的性能。
General information
| Item | Specification | Unit | |

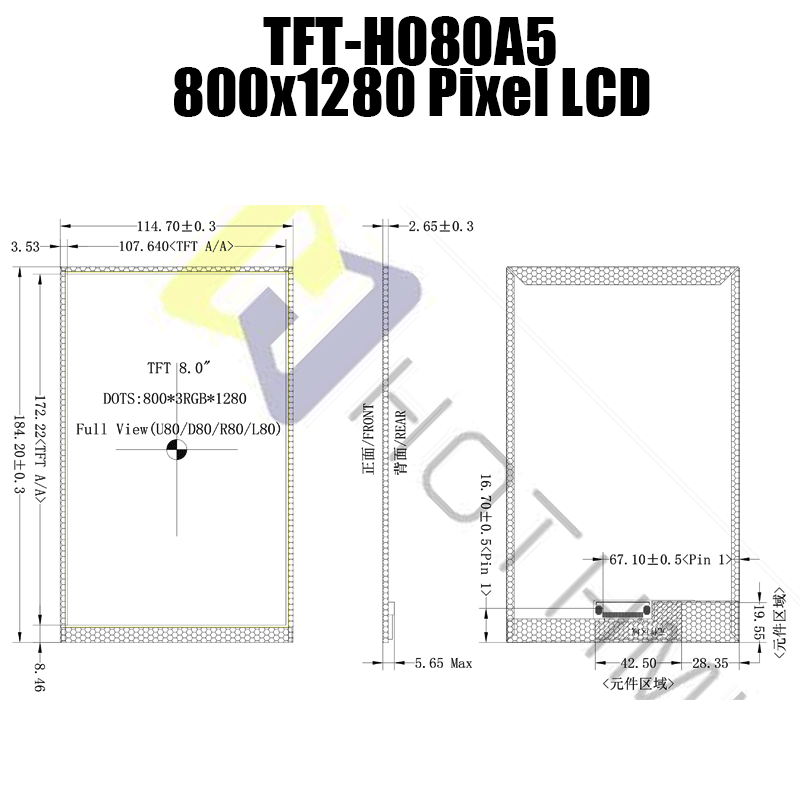

| Outline Dimension | 114.70x184.20x2.65mm | mm | |
| Display area | 107.64x172.224mm | mm | |
| Number of Pixel | 800(H) x 1280(V) | pixels | |
| Pixel pitch | - | mm | |
| Pixel arrangement | RGB Vertical Stripe | ||
| Display mode | Normally Black | ||
| NTSC | 70(Typ.) | % | |
| Surface treatment | Antiglare, Hard-Coating (3H) | ||
| Weight | - | g | |
| Back-light | Single LED (Side-Light type) | ||
Power Consumption | Logic System (White Pattern) | JD9365 | W |
| B/L System | - | W | |
TFT Pin Description
| Pin NO. | Symbol | Description |
| 1 | GND | Ground |
| 2 | D0P | MIPI DSI positive differential data |
| 3 | D0N | MIPI DSI negative differential data |
| 4 | GND | Ground |
| 5 | D1P | MIPI DSI positive differential data |
| 6 | D1N | MIPI DSI negative differential data |
| 7 | GND | Ground |
| 8 | DCKP | MIPI DSI positive differential clock |
| 9 | DCKN | MIPI DSI negative differential clock |
| 10 | GND | Ground |
| 11 | D2P | MIPI DSI positive differential data |
| 12 | D2N | MIPI DSI negative differential data |
| 13 | GND | Ground |
| 14 | D3P | MIPI DSI positive differential data |
| 15 | D3N | MIPI DSI negative differential data |
| 16~17 | GND | Ground |
| 18~19 | IOVCC | Power Supply for I/O System |
| 20 | CSX/NC | No Connect |
| 21 | SDA/NC | No Connect |
| 22 | SCL/NC | No Connect |
| 23 | SDO/NC | No Connect |
| 24 | RESX | TFT Reset Pin |
| 25~26 | NC | No Connect |
| 27 | GND | Ground |
| 28~29 | LEDK | LED Cathode |
| 30 | GND | Ground |
| 31 | NC | No Connect |
| 32~33 | GND | Ground |
| 34 | NC | No Connect |
| 35~36 | LEDA | LED Anode |
| 37 | GND | Ground |
| 38~39 | VCI | Digital Power |
| 40 | NC | No Connect |
All Products
| Reliability Testing | Customers can expect all production parts to meet or exceed operational requirements over temperature, humidity, and vibration. |
| Glass Cleanliness | Customers can expect glass to be protected by liners and presented mindful of cleanliness standards. This means glass will be clean of contaminants, fingerprints, and other foreign material. |
| Bezel Appearance | Bezels will be uniformly painted free of foreign materials and distracting cosmetic blemishes. Our standards maintain a clean scratch-free surface. |
| PCB Appearance | PCB’s are delivered with long-term reliability in mind. Finishes are free of bubbles, foreign contaminants, and meet all UL fire requirements. PCB materials will always be delivered within industry norms. PCB edges will be cleanly cut and void of burrs. |
| Soldering | Soldering of all leaded and SMT components is consistent in providing the mechanical security and electrical connectivity. |
| Consistency | Our manufacturing and inspection processes ensure product consistency from lot to lot. This means orders processed over the years will continually meet your expectations. We do this by exacting manufacturing specifications, with attention to detail in our processes, and by comparing to the golden units. |
| Product Integrity | Quality in product manufacturing ensures integrity in construction. Customers can expect tight assembly without worry of loose parts or missing material. Our products will meet all environmental expectations including temp, humidity, & vibration conditions. |
| Glass Color | While normal variations of glass color may occur (due to manufacturing tolerances), Newhaven Display maintains color compliance per internal approved color charts. These charts are maintained to ensure any minor glass deviations are identified and corrected as needed. |
| ESD Protection & Safety | All devices are designed and handled in consideration of ESD protection. This includes ESD-SAFE packaging within anti-static bags, wraps, and trays. Customers are reminded to always follow ESD safety to best protect the devices. |
