类型：TFT竖屏

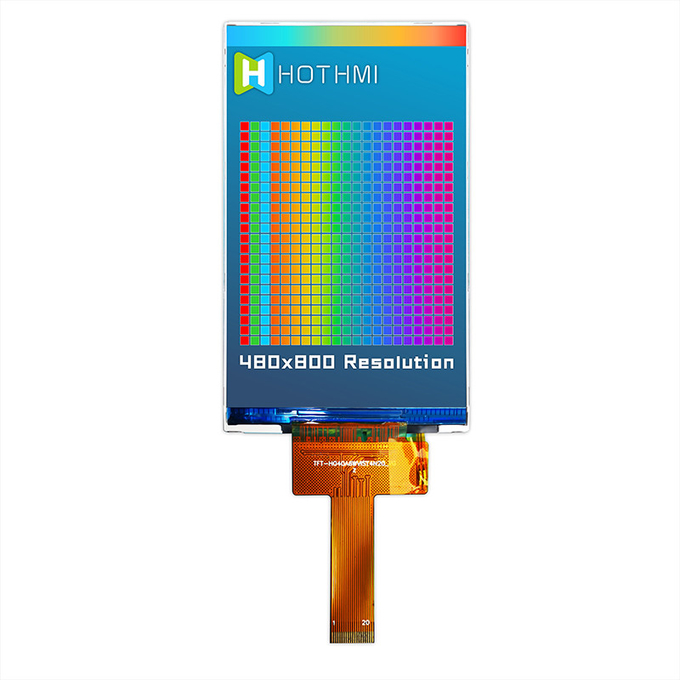

显示像素：400x800
外形尺寸(mm) ：57.14x96.85x2.1
VA尺寸(mm)：4.0
AA尺寸(mm) ：4.0
有效尺寸mm：51.84x86.4
应用：手持设备

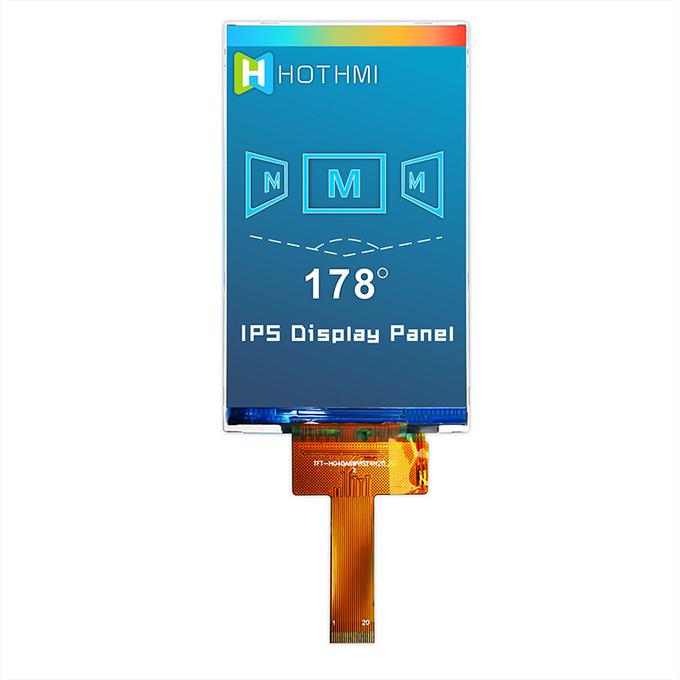

视角：全视角

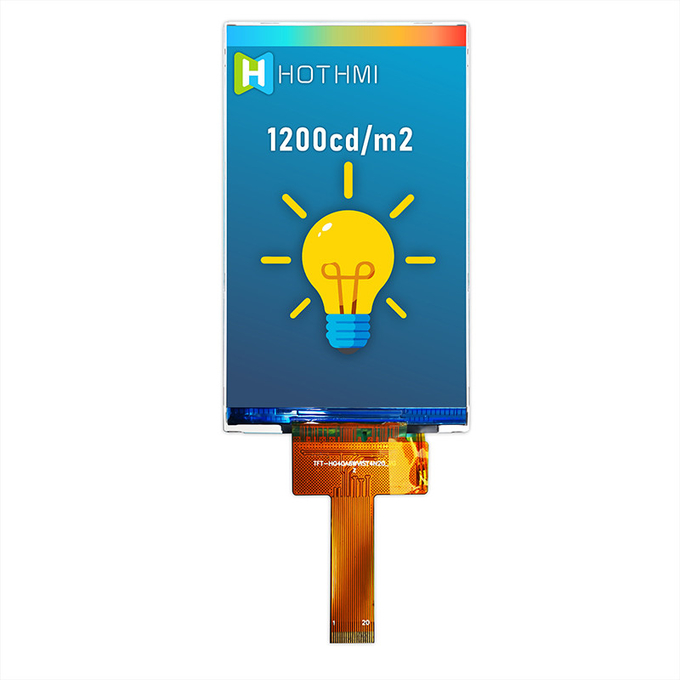

背光/亮度：1200cd/m2
引脚：20pin

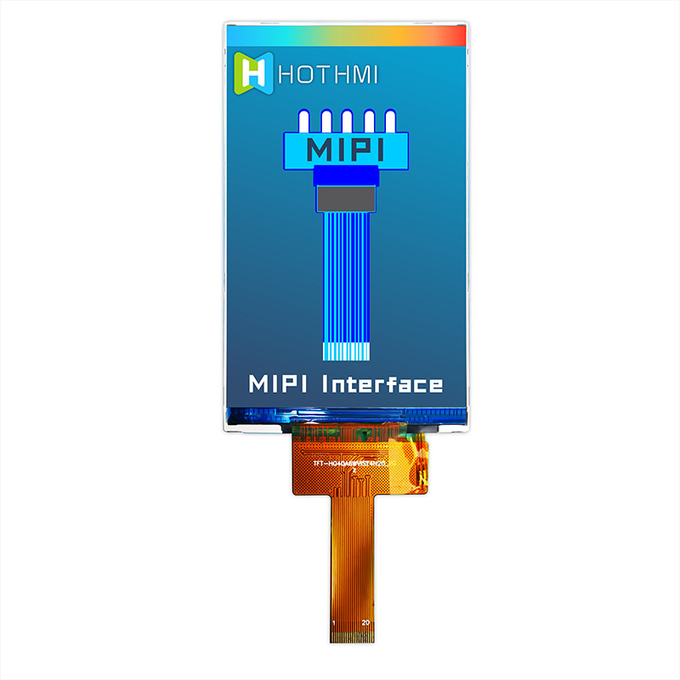

接口方式：MIPI

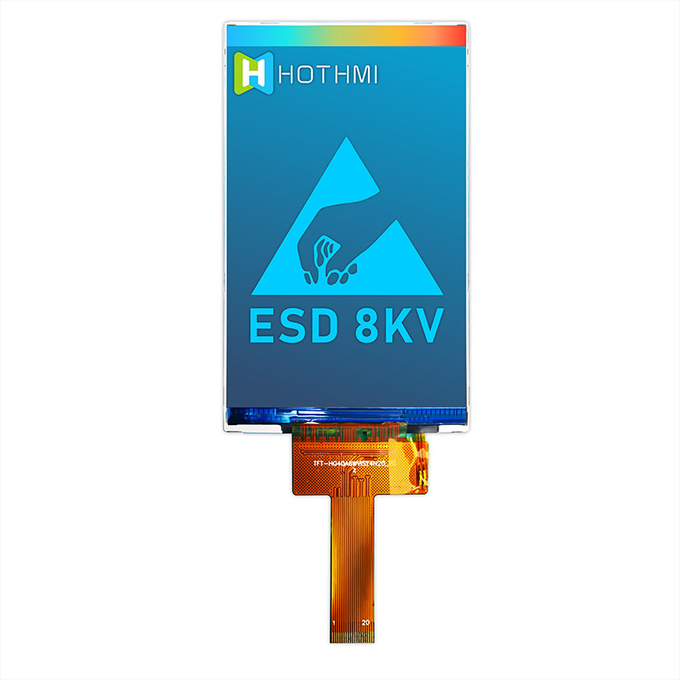

特殊说明：抗静电ESD 8KV

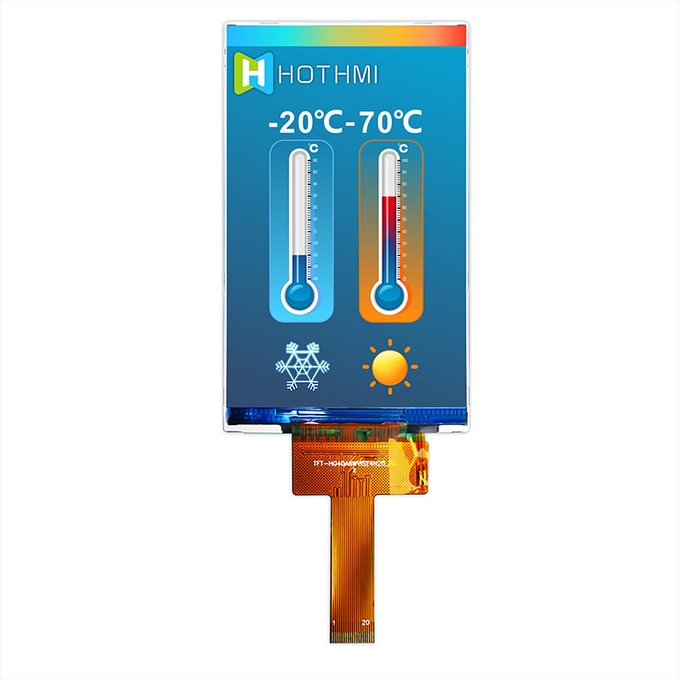

工作温度：-20~70℃
供电电压：3.3V

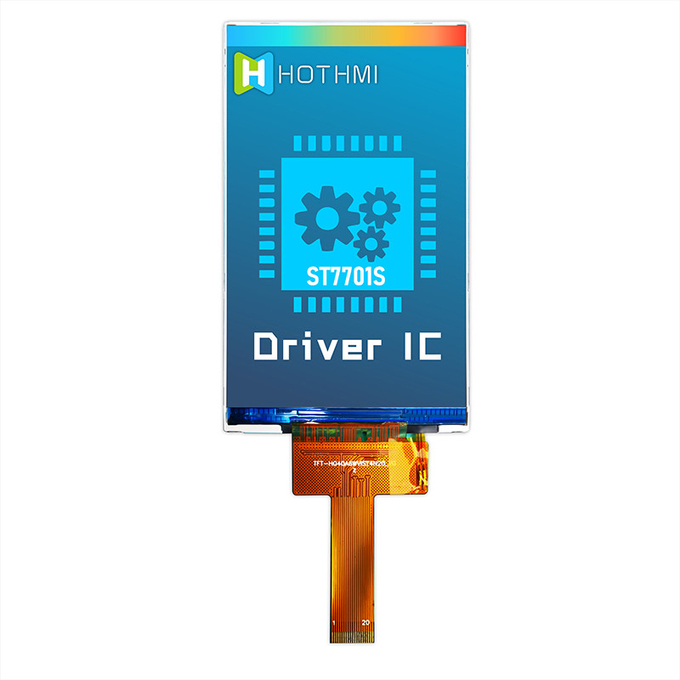

驱动芯片：ST7701S

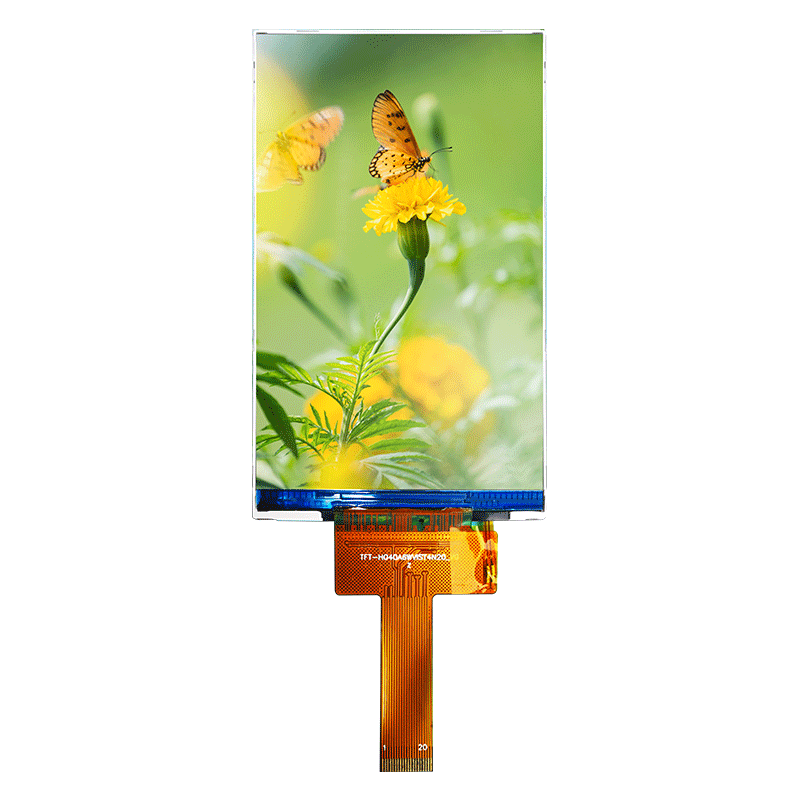

4.0寸TFT/4.0寸TFT彩屏|480*800分辨率|IPS全视角|MIPI接口TFT-H040A6WVISTKN20

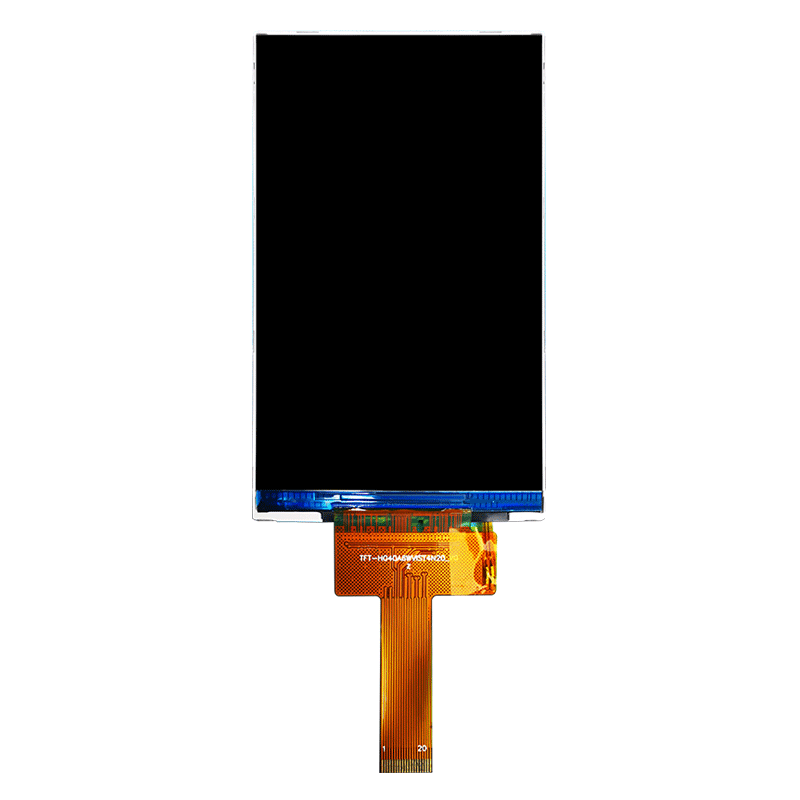

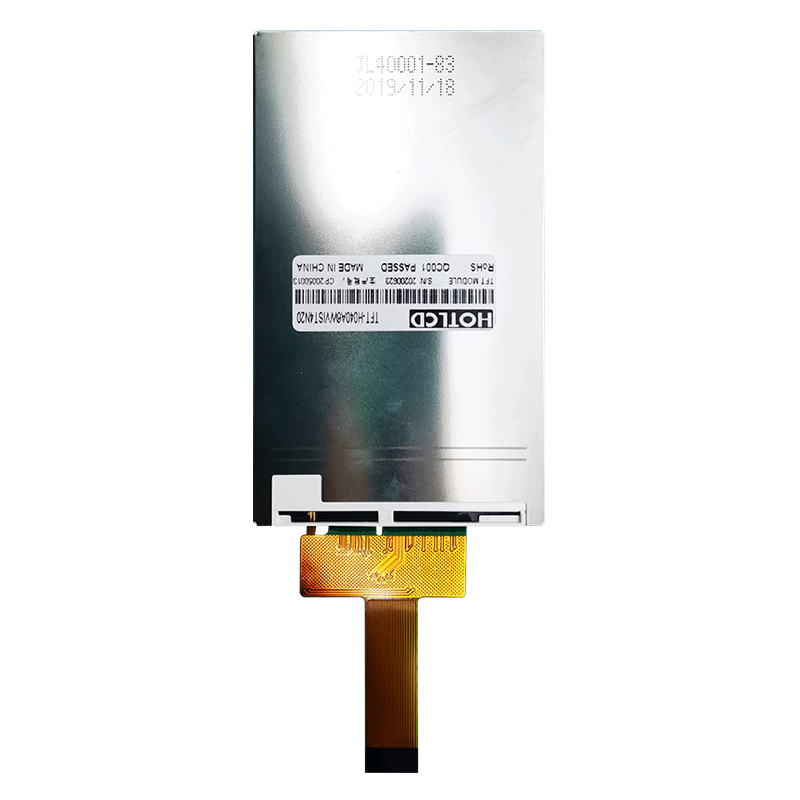

4.0英寸480x800 IPS MIPI TFT模块阳光下可读/TFT-H040A6WVISTKN20
TFT-H040A6WVISTKN20 | 4.0" IPS LCD | 480x800px 屏幕 | 阳光下可读 | 无触摸屏
TFT-H040A6WVISTKN20 | 4.0" IPS LCD | 480x800px 屏幕 | 无触摸屏 | TFT-H040A6WVISTKN20

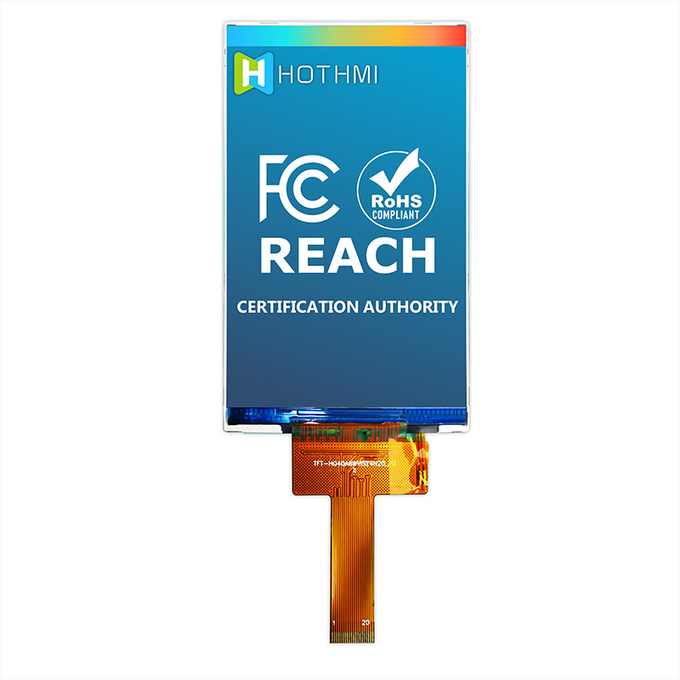

这款 4.0" 显示屏是 480x800 分辨率的 IPS TFT。LCD 屏幕采用 IPS 技术，可提供增强的色彩再现、更好的图像一致性、高亮度背光的阳光下可读性，并在任何角度都具有卓越的光学特性。这种 24 位真彩色 液晶显示器还包括更好的 FPC 设计，电缆上有 EMI 屏蔽。它还有一个内置的 ST7701S IC 驱动器，并提供与 TN 显示器相同的机械足迹和引出线。该 TFT 符合 RoHS 标准
General Feature
Item | Standard Value | Unit | ||
Display Size | 4.0 | Inch | ||
Number of Pixels | 480(H)*3(RGB)* 800(V) | dots | ||

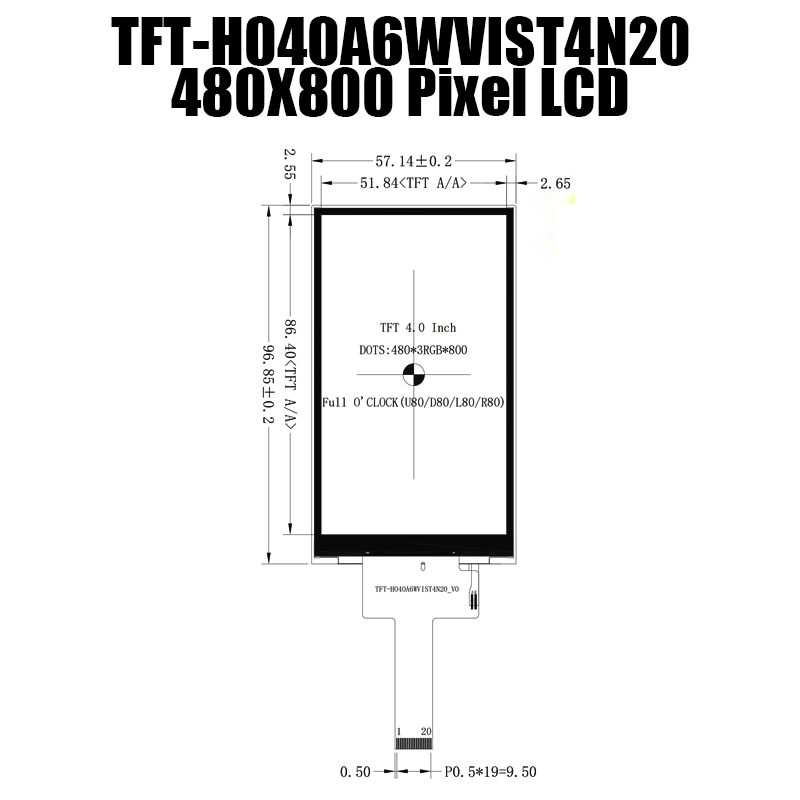

Active Area | 51.84x86.4mm | mm | ||
Outline Dimension | 57.14x96.85x2.1mm | mm | ||
Viewing Direction | FULL O'clock | - | ||
Interface | MIPI | - | ||
Driver IC | ST7701S | - | ||
Driver Condition | VCI=2.8V(Typ) | V | ||
Backlight | - | - | ||
Touch Panel | WHITOUT TOUCH | |||
CTP Driver IC | - | - | ||
Driver Condition | VDD=2.8V | V | ||
TFT Operation AT | -20 ～ +70 | ℃ | ||
TFT Storage AT | -30 ～ +85 | ℃ | ||
TFT Pin Description
| Pin NO. | Symbol | Description | ||
| 1 | NC | Not Connect | ||
| 2 | LEDK | LED Cathode | ||
| 3 | NC | Not Connect | ||
| 4 | LEDA | LED Anode | ||
| 5 | NC | Not Connect | ||
| 6 | VCI | Digital Power | ||
| 7 | IOVCC | IO Supply Voltage | ||
| 8 | NC | Not Connect | ||
| 9 | RESX | Global Reset Signal. Active Low. | ||
| 10 | GND | Ground | ||
| 11 | D1P | |||
| 12 | D1N | MIPI-DSI data Lane 1 negative-end input/output pin. | ||
| 13 | GND | Ground | ||
| 14 | DCKP | MIPI-DSI clock Lane positive-end input pin. | ||
| 15 | DCKN | MIPI-DSI clock Lane negative-end input pin. | ||
| 16 | GND | Ground | ||
| 17 | D0P | |||
| 18 | D0N | MIPI-DSI data Lane 0 negative-end input/output pin. | ||
| 19~20 | GND | Ground | ||
