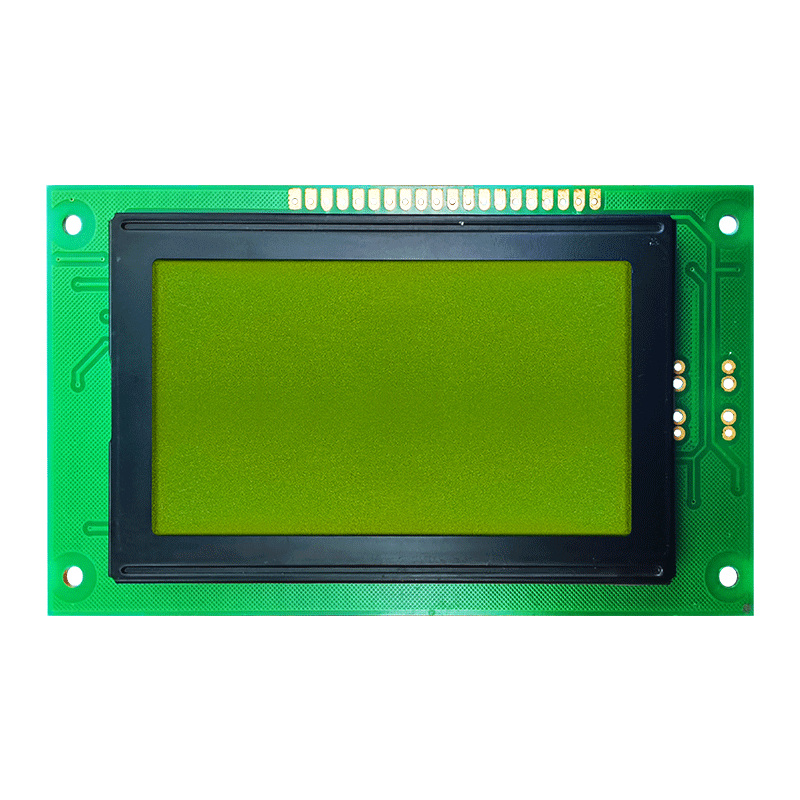

类型：标准COB液晶模组
显示像素：128x64
外形尺寸(mm) ：113.0x65.0x12.7
VA尺寸(mm)：72.0x39.5
AA尺寸(mm) ：66.52x33.24
点间距mm：0.52x0.52
应用：工业控制
视角：6H
背光/亮度：白光
引脚：20PIN
接口方式：MCU
特殊说明：抗静电ESD 8KV
工作温度：-20~70℃
供电电压：5.0v

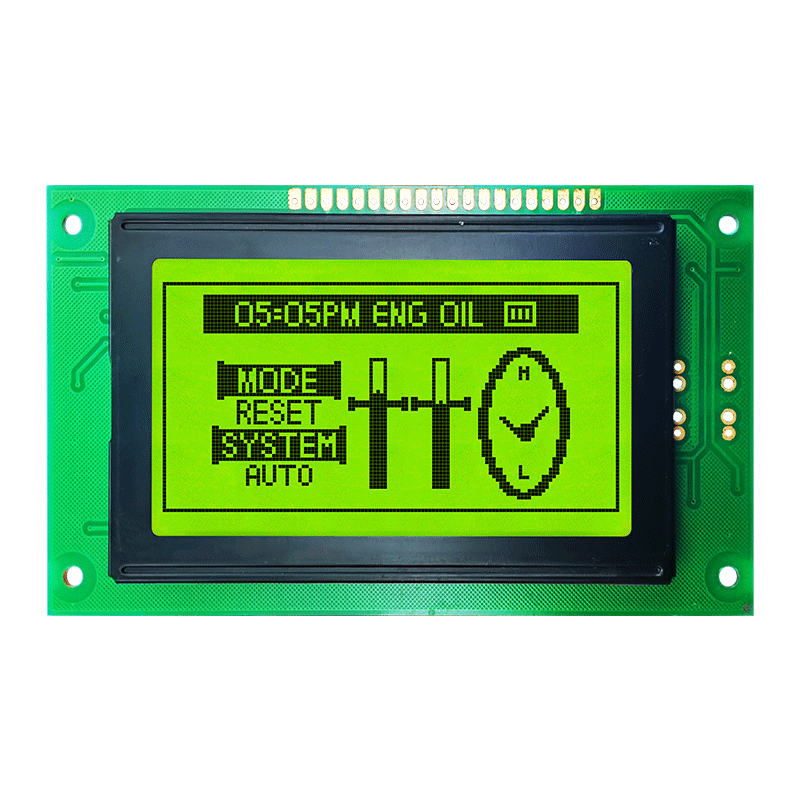

HOTLCD 128x64 图形玻璃上芯片 (COG) 液晶显示器在灰色背景上显示蓝色像素。 这种透反式 LCD 显示屏在环境光或背光下可见，同时提供 -20 至 70 摄氏度的宽工作温度范围。 这款 HTM12864A-25W-N5P 显示器具有 6:00 的最佳视野，在 3.3V 电源电压下运行并且符合 RoHS 标准。
ew of 6:00, operates at 3.3V supply voltage and is RoHS compliant.

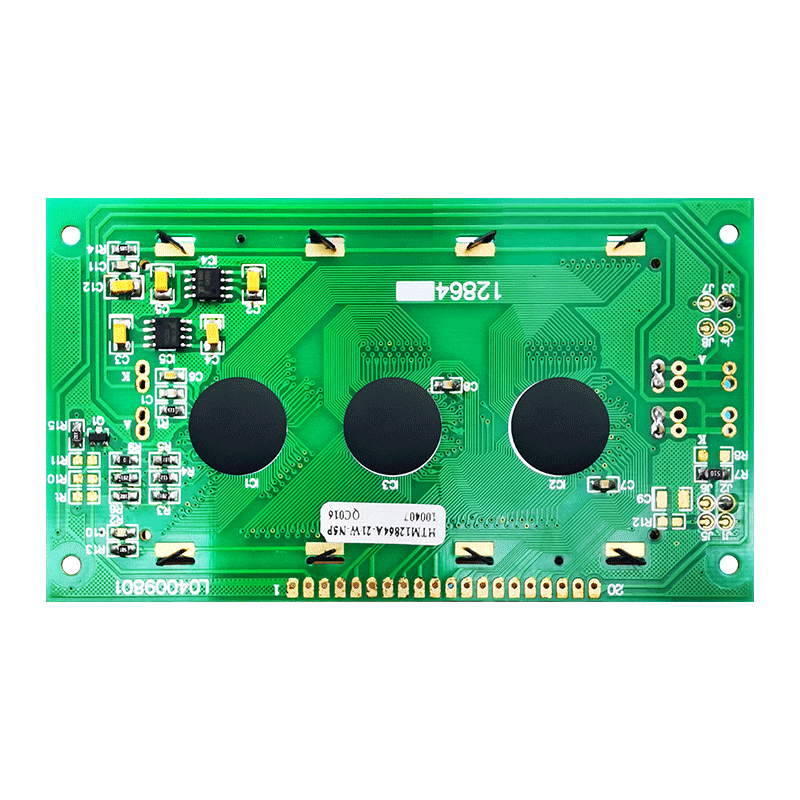

Mechanical Data
| Item | Standard Value | Unit |
|---|---|---|
| Module Dimension | 113.0x65.0x12.7 | mm |
| Viewing Area | 72.0x39.5 | mm |
| Mounting Hole | 66.52x33.24 | mm |
| Dot Pitch | 0.52x0.52 | mm |
| Dot Size | 0.48x0.48 | mm |
| Item | Symbol | Standard Value typ. | Unit |
|---|---|---|---|
| Input Voltage | VDD | 3.3 | V |
Terminal Function
| Pin No. | Pin Name | Function |
| 1 | VSS | Power Supply Negative(0V) |
| 2 | VDD | Power Supply Positive(5.0V) |
| 3 | V0 | LCM Adjust Contrast |
4 | RS | Data or Instruction. RS=H->DB<0:7> : Display RAM Data RS=L->DB<0:7> : Instruction Data |
| 5 | R/W | H:Read ; L: Write. |
6 | E | Enable signal. write mode (R/W=L) -> data of DB<0:7> is latched at the falling edge of E. |
| 7~14 | D0~D7 | Data Buss |
| 15 | /CS1 | Chip selection input 1(Left) |
| 16 | /CS2 | Chip selection input 2(Mid) |
| 17 | /RST | Reset Signal input |
| 18 | VOUT | LCD Driver, About( - 10)V |
| 19 | BLA | Backlight Positive(5.0V) |
| 20 | BLK | Backlight Negative(0V) |
Absolute Maximum Ratings
| Items | Symbol | MIN. | MAX. | Unit | Condition |
| Supply Voltage | VDD | - | +5.5 | V | VSS = 0V |
| Supply Voltage | VEE | VDD- 16.0 | VDD+0.3 | V | VSS = 0V |
| Driver Supply Voltage | VLCD | VEE-0.3 | VDD+0.3 | V | - |
| Operating Temperature | TOP | -20 | +70 | ℃ | No Condensation |
| Storage Temperature | Tst | -30 | +80 | ℃ | No Condensation |
Electrical Characteristics
| Items | Symbol | MIN. | TYP. | MAX. | Unit | Condition |
| Operating Voltage | VDD | 4.5 | 5.0 | 5.5 | V | VDD |
| Input High Voltage | VIH | 2.0 | - | VDD | V | *1 |
| Input Low Voltage | VIL | 0 | - | 0.8 | V | |
| Output High Voltage | VOH | 2.4 | - | - | V | *2 |
| Output Low Voltage | VOL | - | - | 0.4 | V | |
| Operating Current | IDD1 | - | 2.0 | 3.0 | A | *3 |
| OSC Frequency | FOSC | 315 | 450 | 585 | KHz | Rf=47K±2% |
LED Backlight Circuit
| Items | Symbol | MIN. | TYP. | MAX. | Unit | Condition |
| Forword Voltage | Vf BLA | - | 5.0 | - | V | Without Resister |
| Forword Current | If BLA | - | 60 | 65 | mA | - |
